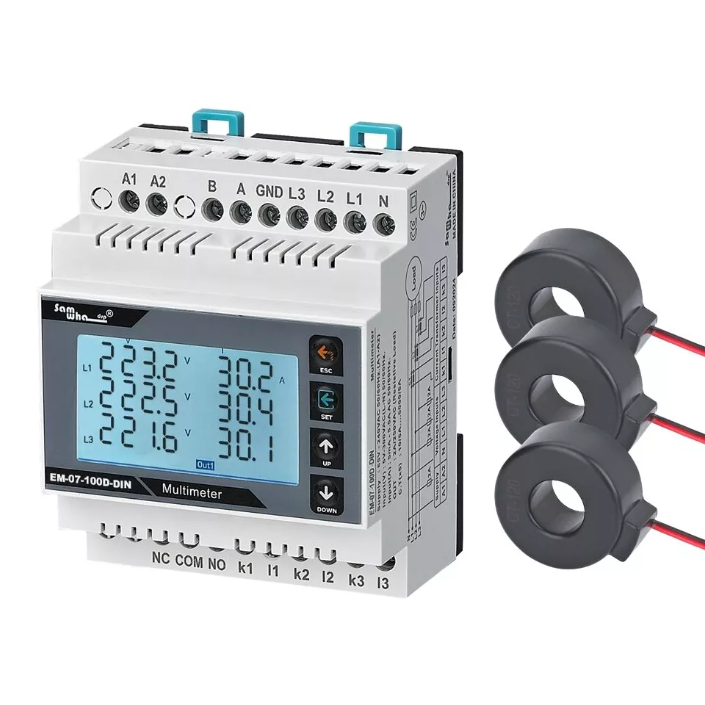

EM-07-100D-DIN Multifunction Power Meter (With CT, DIN Rail Type, 10–100A Range)

EM-07-100D-DIN Multifunction Power Meter (With CT, DIN Rail Type, 10–100A Range)

The EM-07-100D-DIN is a compact and intelligent multifunction power meter designed for real-time measurement of electrical parameters such as voltage, current, frequency, and apparent power. Built for DIN rail mounting and equipped with an included CT (Current Transformer), this meter is ideal for energy monitoring and protection in commercial and industrial electrical systems.

Inquiry Now

Description

EM-07E-DIN ( User Manual ) ➜

Part of the EM-07-XXD-DIN series, the EM-07-100D-DIN monitors and displays 3-phase voltage and current, per-phase apparent power (S), and tracks minimum, maximum, average, and demand values for accurate load analysis. A clear 71.5×61.5mm glass LCD display and easy-to-use menu ensure smooth operation, while a password-protected interface adds security.

The unit offers comprehensive protection features, including adjustable high/low limits for voltage, current, and frequency, along with phase-to-phase and phase-to-neutral protection. It also shows phase sequence for correct phase alignment and wiring safety.

With RS485 communication (Modbus RTU protocol), it integrates easily into remote monitoring and SCADA systems. A programmable relay output provides alarm or control capabilities. Designed for loads ranging from 10A to 100A, it supports 3-phase voltage and current transformer inputs.

Key Features

DIN Rail Mounted – Compact, space-saving design
Glass LCD Display (71.5×61.5mm) – Easy-to-read metrics at a glance
Included CT (Current Transformer) – Ready-to-install configuration
3-Phase Voltage & Current Monitoring
Displays Apparent Power (S) for Each Phase
Shows Voltage (V), Current (I), Frequency (F)
Tracks Minimum, Maximum, Average & Demand Values
RS485 Communication (Modbus RTU) – For remote system integration
High/Low Voltage, Current, Frequency Protection – Fully adjustable
Phase-to-Phase / Phase-to-Neutral Protection
Phase Sequence Indication – Ensures proper connection
Password-Protected Configuration Menu
1 Programmable Relay Output – For alarms or automation
Monitoring Range: 10–100A – Ideal for small to mid-range loads

Applications

Industrial and commercial energy monitoring
Power distribution systems
Load analysis and demand control
Smart panels and automation setups
SCADA and BMS integration

The EM-07-100D-DIN offers reliable, secure, and detailed energy monitoring in a compact DIN-rail package—perfect for intelligent power control and protection in modern electrical networks.
