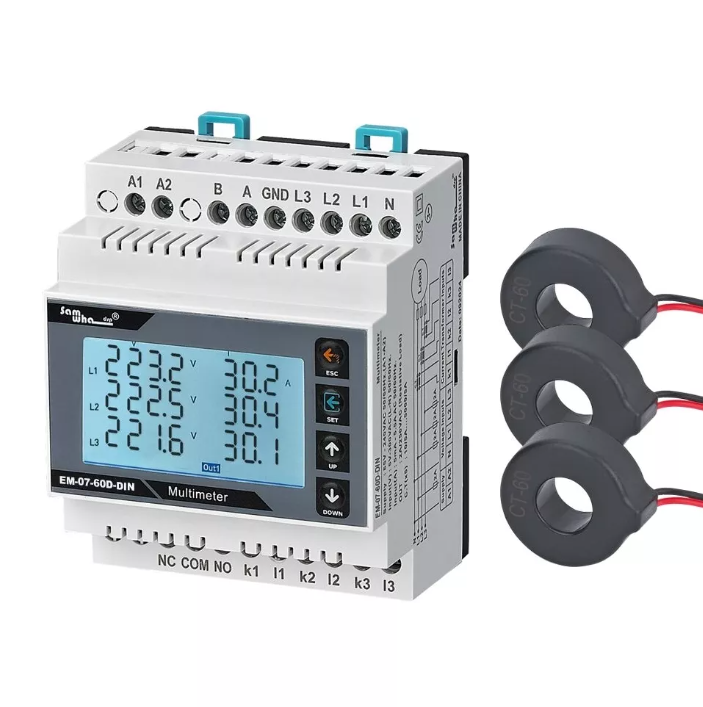

EM-07-60D-DIN Multifunction Power Meter (With CT, DIN Rail Type, 1–63A Range)

EM-07-60D-DIN Multifunction Power Meter (With CT, DIN Rail Type, 1–63A Range)

The EM-07-60D-DIN is a compact, high-precision multifunction digital power meter designed for real-time measurement of key electrical values including voltage, current, frequency, and apparent power. With an included CT (Current Transformer) and RS485 Modbus RTU communication, it is ideal for reliable monitoring and protection in small-to-medium scale commercial and industrial systems.

Inquiry Now

Description

EM-07E-DIN ( User Manual ) ➜
Part of the EM-07-XXD-DIN series, the EM-07-60D-DIN is optimized for low-current applications, monitoring electrical loads ranging from 1A to 63A. It measures and displays 3-phase voltage and current, per-phase apparent power (S), and provides comprehensive data such as minimum, maximum, average, and demand values.

A 71.5×61.5mm glass LCD display ensures sharp visibility, while the easy-to-use, password-protected menu allows secure configuration. This model includes built-in protection for high/low voltage, current, and frequency, as well as phase-to-phase or phase-to-neutral fault detection.

The integrated RS485 (Modbus RTU) port allows seamless integration into remote monitoring or SCADA systems, and the adjustable relay output can be used for alarms or automation tasks. It supports 3-phase voltage and CT input, making it suitable for comprehensive system monitoring in compact spaces.

Key Features

DIN Rail Mounted Design – Compact and panel-friendly
71.5×61.5mm Glass LCD Display – Clear and easy monitoring
Included CT (Current Transformer) – Supports 1–63A loads
3-Phase Voltage & Current Measurement
Displays Apparent Power (S) Per Phase
Shows Voltage (V), Current (I), and Frequency (F)
Records Min, Max, Avg & Demand Values
RS485 Communication (Modbus RTU) – Remote data access
Adjustable Protection – Voltage, current, frequency thresholds
Phase-to-Phase & Phase-to-Neutral Fault Protection
Phase Sequence Display – Ensures correct wiring
Password-Protected Configuration Menu
1 Programmable Relay Output – For control or alarms
Monitoring Range: 1–63A – Ideal for light to moderate loads

Applications

Small industrial machinery monitoring
Commercial panelboards and load centers
Energy management systems
Remote SCADA integration
Electrical safety and automation

The EM-07-60D-DIN Multifunction Meter offers compact, feature-rich, and highly accurate electrical monitoring—ideal for protecting and managing low-to-medium current systems with advanced control and communication features.
