EM-07-60D Multifunction Power Meter (Panel Mount, 96×96 mm, 60A Range)

EM-07-60D Multifunction Power Meter (Panel Mount, 96×96 mm, 60A Range)

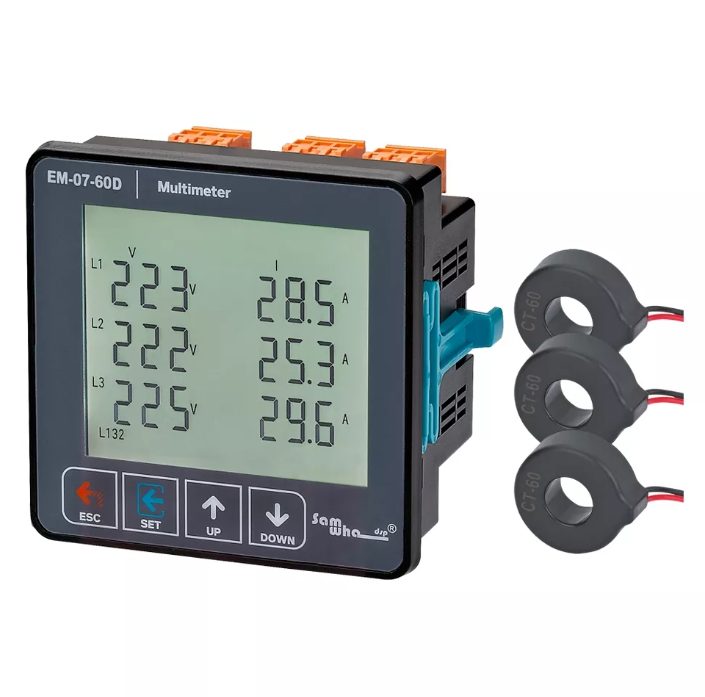

The EM-07-60D is a compact and accurate multifunction power meter designed to monitor and display key electrical parameters in 3-phase systems. Ideal for low-to-medium current loads, it features RS485 Modbus RTU communication, a clear glass LCD display, and built-in protection features—making it a dependable choice for industrial and commercial applications.

Inquiry Now

Description

EM-07 ( User Manual ) ➜

The EM-07-60D allows precise measurement of voltage, current, frequency, and apparent power, along with minimum, average, maximum, and demand values for full visibility into energy usage. With 3-phase voltage and current transformer inputs, it supports accurate monitoring of individual phase data.

Its 96×96 mm panel-mounted design fits standard enclosures, while the bright 71.5×61.5 mm glass LCD display provides easy-to-read real-time information. Built-in RS485 communication (Modbus RTU) allows seamless integration with SCADA, BMS, or other remote monitoring systems.

The meter includes adjustable protection thresholds for voltage, current, and frequency, as well as phase-to-phase and phase-to-neutral protection, phase sequence monitoring, and a programmable relay output for system alarms or automation. A password-protected menu secures settings from unauthorized access.

Key Features

Panel-Mounted Design (96×96 mm)
71.5×61.5 mm Glass LCD Display – High-contrast, user-friendly interface
3-Phase Voltage and Current Monitoring
Per-Phase Apparent Power Display (S)
Voltage (V), Current (I), Frequency (F) Monitoring
Min, Max, Avg, and Demand Value Tracking
RS485 Modbus RTU Communication – Remote access & integration
Adjustable Alarms for Voltage, Current, Frequency
Phase-to-Phase / Phase-to-Neutral Protection
Phase Sequence Display – Wiring safety assurance
Password-Protected Settings
1 Programmable Relay Output
Supports up to 60A with external CTs

Applications

Power monitoring in control panels
Factory and equipment load supervision
Commercial building energy management
SCADA/BMS integration
Low-to-medium current system protection

The EM-07-60D combines performance, accuracy, and protection in one compact unit—ideal for systems requiring reliable 3-phase electrical monitoring and control.
