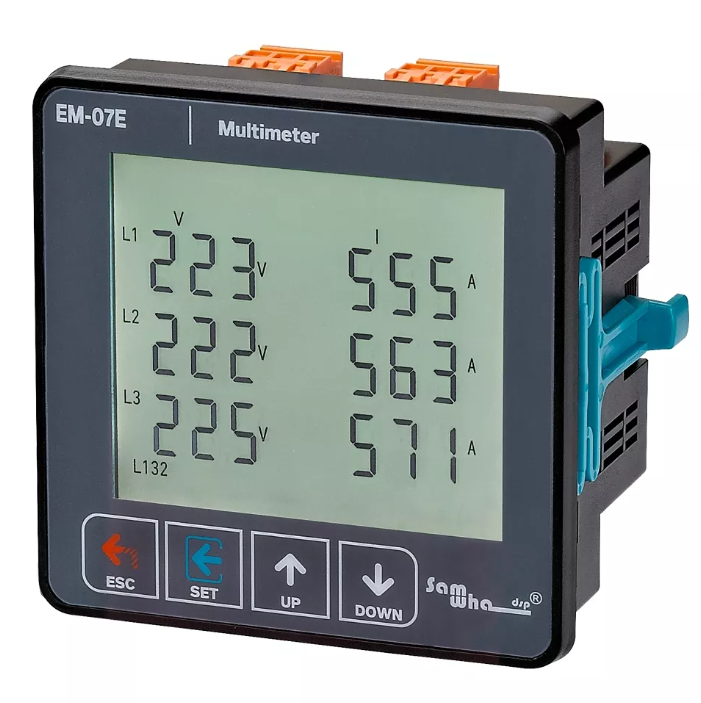

EM-07E Multifunction Power Meter (Panel Mount, 96×96 mm)

EM-07E Multifunction Power Meter (Panel Mount, 96×96 mm)

The EM-07E is a compact and intelligent multifunction power meter designed for real-time monitoring of 3-phase electrical systems. With a 96×96 mm panel-mounted format, high-clarity 71.5×61.5 mm glass LCD display, and RS485 Modbus RTU communication, it’s ideal for commercial, industrial, and automation applications requiring accurate energy management.

Description

EM-07E ( User Manual ) ➜

The EM-07E measures essential electrical parameters such as voltage, current, frequency, and apparent power, while also tracking minimum, average, maximum, and demand values of connected loads. It supports 3-phase voltage and current transformer input, allowing detailed, phase-wise data monitoring.

The user-friendly interface and RS485 communication capability make this meter suitable for integration into SCADA and BMS systems. Designed for easy panel installation, the EM-07E is ideal for centralized power monitoring in control rooms or switchgear setups.

Built-in protection features include alarms for voltage, current, and frequency, phase sequence detection, and adjustable thresholds, helping protect equipment from abnormalities. A password-protected menu keeps system settings secure from unauthorized access.


Key Features

  • Standard Panel Size (96×96 mm) – Fits most control panels
  • 71.5×61.5 mm Glass LCD Display – High contrast and wide viewing angle
  • 3-Phase Voltage and Current Monitoring
  • Shows Per-Phase Apparent Power (S)
  • Voltage, Current, and Frequency Monitoring for Each Phase
  • Tracks Min, Max, Average, and Demand Values
  • RS485 Modbus RTU Communication – Seamless integration with remote systems
  • Voltage, Current & Frequency Protection Functions
  • Phase Sequence Monitoring – Prevents reverse connection issues
  • Password-Protected Settings Menu – Secure system configuration

Applications

  • Power distribution monitoring
  • Industrial and factory control systems
  • Generator and transformer control panels
  • SCADA and automation systems
  • Commercial electrical metering setups

The EM-07E offers reliable and precise monitoring for a wide range of 3-phase power systems—making it a valuable addition to any modern electrical monitoring and protection infrastructure.
