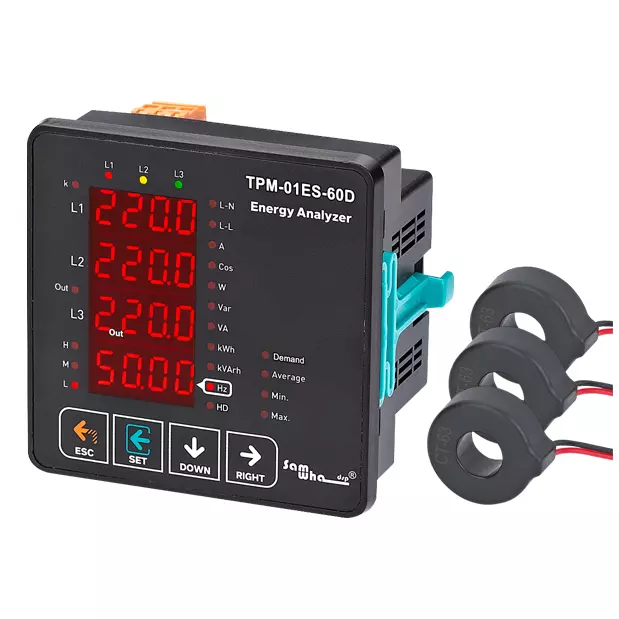

TPM-01ES-60D Energy Analyzer (96×96 Panel Type, Included C.T, RS485, 1 Relay Output)

The TPM-01ES-60D is a compact, panel-mounted energy analyzer built for accurate real-time monitoring of electrical parameters. With a built-in Current Transformer (C.T), RS485 communication, and a relay output, it offers a powerful solution for load analysis and energy management.

Description

TPM-01E ( User Manual ) ➜

Engineered for high-precision measurements, the TPM-01ES-60D continuously tracks voltage, current, power factor (cosφ), active and reactive power, as well as demand values. It also logs minimum and maximum values to provide a full picture of load behavior over time.

The RS485 Modbus RTU communication interface allows seamless integration with SCADA or other energy monitoring systems. The included relay output can be used for alarms or automated responses, making this analyzer ideal for both diagnostics and control.

 Key Features

  • Measures voltage, current, cosφ
  • Displays active (P) and reactive (Q) power
  • Tracks demand and min/max values
  • RS485 Modbus RTU for remote access
  • Includes 60A-rated Current Transformer
  • 1 Relay Output for control/alarm
  • 96×96 mm panel-mounted design
  • Reliable and accurate energy monitoring

 Applications

  • Industrial and commercial power panels
  • Remote energy monitoring
  • Load and demand analysis
  • Generator performance monitoring
  • Cost-efficient energy management

The TPM-01ES-60D delivers dependable electrical parameter analysis with communication and control—ideal for smart energy monitoring solutions.
