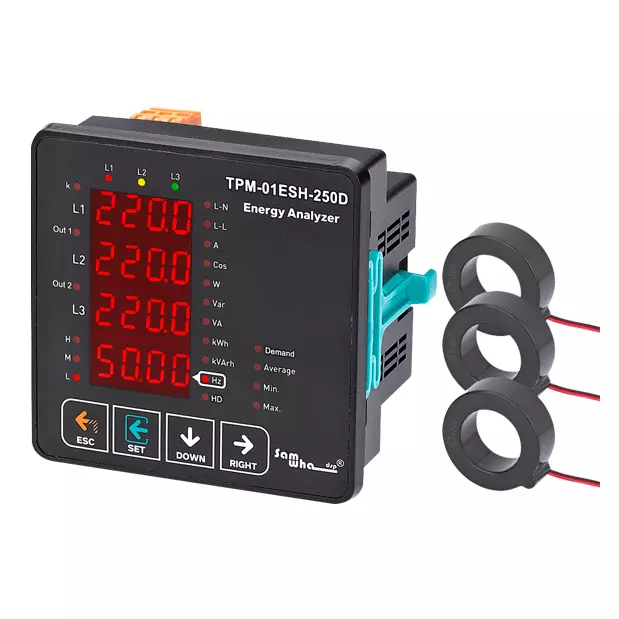

TPM-01ESH-250D Energy Analyzer (96×96 Panel Type, Included C.T, RS485, 2 Relay Outputs)

The TPM-01ESH-250D is a high-performance digital energy analyzer engineered to monitor voltage, current, power factor, and energy parameters in real-time. It comes with Current Transformers (C.T) included, dual relay outputs, and RS485 communication for seamless control and integration.

Description

TPM-01E ( User Manual ) ➜

Designed for advanced energy monitoring, the TPM-01ESH-250D provides comprehensive electrical parameter tracking including voltage, current, active/reactive power, cosφ, and demand values. It logs both minimum and maximum readings, supporting in-depth diagnostics and analysis.

Equipped with RS485 Modbus RTU for remote communication and two programmable relay outputs, this analyzer enhances system control and automation. The 96×96 panel mount form factor ensures compatibility with standard electrical cabinets.

Key Features

  • Measures voltage, current, cosφ, active and reactive power
  • Tracks demand, minimum, and maximum values
  • RS485 Modbus RTU for remote data access
  • 2 Relay Outputs for customizable control functions
  • Comes with built-in Current Transformers (C.T)
  • Compact 96×96 mm panel-mounted design
  • Ideal for industrial and commercial energy monitoring

Applications

  • Power distribution systems
  • Industrial machinery load monitoring
  • Energy management and cost control
  • Generator and transformer tracking
  • Building automation systems

With powerful features and real-time analytics, the TPM-01ESH-250D is a dependable solution for efficient energy management and system reliability.
