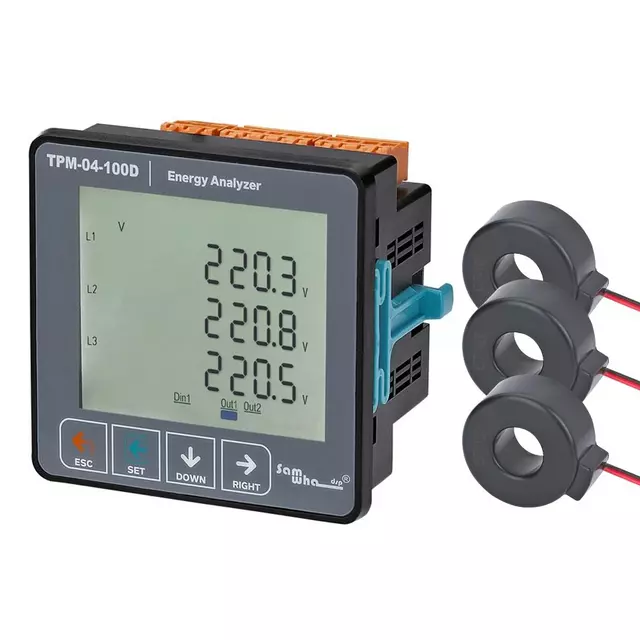

TPM-04-100D Energy Analyzer (96×96 Panel Type, Included C.T)

TPM-04-100D Energy Analyzer (96×96 Panel Type, Included C.T)

The TPM-04-100D is a high-performance three-phase energy analyzer equipped with built-in Current Transformers (C.T) for accurate current measurement up to 100A. It is designed to provide real-time monitoring of power systems for enhanced energy management and diagnostics.

Description

TPM-04,04SH ( User Manual ) ➜

Ideal for industrial and commercial power systems, the TPM-04-100D delivers continuous insights into voltage, current, frequency, power factor, harmonics (up to the 31st order), and energy consumption. Its 96×96 panel design with a bright 71.5×61.5 glass LCD enables convenient on-site readings.

The device includes one adjustable relay output and supports RS485 (ModBus RTU) communication for seamless integration with SCADA or BMS systems. It allows tracking of energy imports/exports, reactive power, and records key events such as voltage/current imbalance and THD.

 Key Features

  • Real-time 3-phase voltage, current, and frequency monitoring
  • Includes built-in Current Transformers for up to 100A
  • Displays Active (P), Reactive (Q), and Apparent (S) power per phase
  • Measures Cosφ and power factor for each phase
  • Voltage and current harmonics up to 31st order
  • Total energy readings: Import/Export (ΣkWh), Inductive/Capacitive (ΣkVArh)
  • Event logs for over/under voltage or current, imbalance, THD
  • 1 programmable relay output
  • RS485 ModBus RTU communication for remote control and integration
  • Password-protected menu with resettable energy counters
  • Demand, min/max value tracking

 Applications

  • Industrial energy monitoring systems
  • Commercial building power panels
  • Load profiling and cost analysis
  • Generator, transformer, or motor power diagnostics
  • Remote power quality monitoring

The TPM-04-100D is a robust and feature-rich analyzer that ensures accurate energy insights, helping you reduce power losses, improve efficiency, and maintain power quality.
