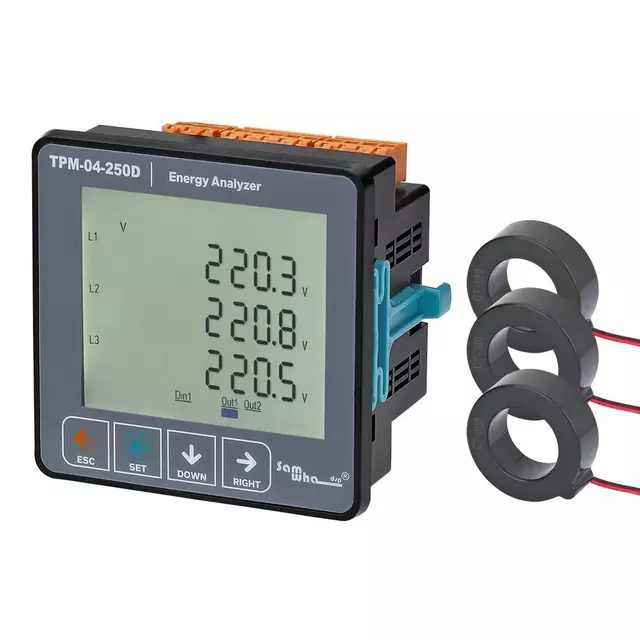

TPM-04-250D Energy Analyzer (96×96 Panel Type, Included C.T)

TPM-04-250D Energy Analyzer (96×96 Panel Type, Included C.T)

The TPM-04-250D is a precision-engineered three-phase energy analyzer designed to measure and monitor a wide range of electrical parameters. It includes high-capacity Current Transformers (C.T) for safe and accurate current sensing up to 250A, making it ideal for industrial energy monitoring and power quality analysis.

Description

TPM-04,04SH ( User Manual ) ➜

The TPM-04-250D provides real-time visibility of voltage, current, power factor, harmonics (up to 31st), and total energy usage. With its clear 71.5×61.5 glass LCD display, it ensures fast interpretation of data directly from control panels. Its 96×96 panel-mounted design enables seamless integration into industrial and commercial systems.

Equipped with RS485 (ModBus RTU) communication, adjustable relay output, and comprehensive event logging, the device is built for automation and remote monitoring. Its password-protected settings and energy reset options ensure secure and customizable usage for modern energy management needs.

 Key Features

  • Measures voltage, current, power factor, frequency, and harmonics
  • Includes 3-phase C.Ts for current monitoring up to 250A
  • Displays Active (P), Reactive (Q), and Apparent (S) power per phase
  • Tracks import/export active energy (ΣkWh) and reactive energy (ΣkVArh)
  • Records min/max values and demand data
  • Easy-to-use interface with bright 71.5×61.5 glass LCD display
  • RS485 ModBus RTU communication for integration with SCADA/BMS
  • 1 adjustable relay output for control functions
  • Password-protected menu with energy reset option
  • Event recording: voltage/current imbalance, high/low conditions, THD

 Applications

  • Industrial power management systems
  • Energy audits and load optimization
  • SCADA integration in factories and buildings
  • Transformer and generator performance monitoring
  • Electrical distribution analysis and diagnostics

The TPM-04-250D delivers advanced functionality and precision in a compact format—making it a must-have solution for accurate, reliable energy monitoring and analysis.
