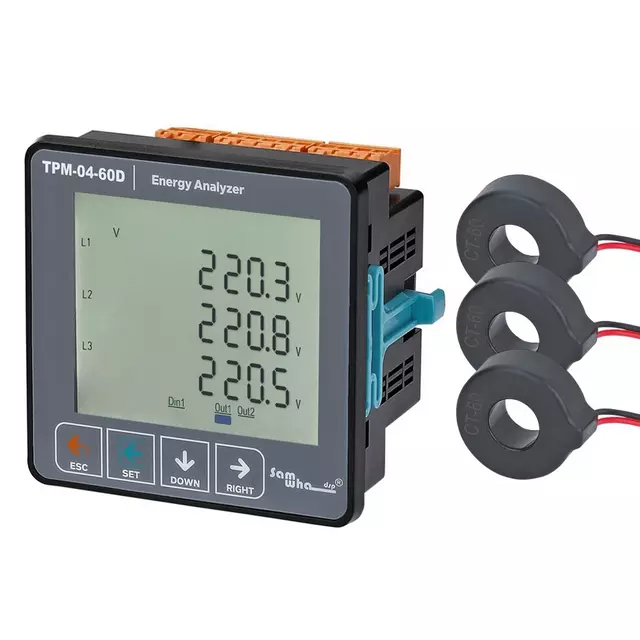

TPM-04-60D Energy Analyzer (96×96 Panel Type, Included C.T)

TPM-04-60D Energy Analyzer (96×96 Panel Type, Included C.T)

The TPM-04-60D is a multifunctional three-phase energy analyzer designed for precise monitoring and evaluation of electrical parameters. With built-in Current Transformers (C.T) supporting up to 60A, it ensures safe and accurate current measurement in power distribution systems.

Description

TPM-04,04SH ( User Manual ) ➜

Tailored for industrial and commercial applications, the TPM-04-60D offers advanced real-time monitoring of voltage, current, harmonics, and power metrics. Its 96×96 panel-mounted design and 71.5×61.5 glass LCD display ensure clear and efficient data visualization.

Equipped with RS485 (ModBus RTU) communication and an adjustable relay output, the device supports seamless integration into SCADA/BMS systems. It also features comprehensive energy tracking—including import/export energy, power quality parameters, and event recording for diagnostics and maintenance.

Key Features

  • Continuous monitoring of voltage, current, power factor, and frequency
  • Built-in C.Ts for current measurement up to 60A
  • Displays Active (P), Reactive (Q), and Apparent (S) power per phase
  • Shows Cosφ and phase-wise power factor
  • Tracks harmonics up to the 31st order
  • Records total energy: Import/Export (ΣkWh) and Reactive (ΣkVArh)
  • Adjustable relay output for control actions
  • RS485 ModBus RTU communication for remote monitoring
  • Minimum/maximum value logging and demand display
  • Password-protected settings with energy reset option
  • Logs abnormal events like voltage/current imbalance, THD, and limits

Applications

  • Power quality monitoring in industrial plants
  • Panel-based energy tracking in commercial setups
  • Generator/load monitoring and diagnostics
  • Building automation and energy audit systems
  • SCADA/BMS integration for remote control and reporting

The TPM-04-60D offers a compact, efficient, and intelligent solution for accurate electrical energy management—enhancing reliability, visibility, and control across your systems.
