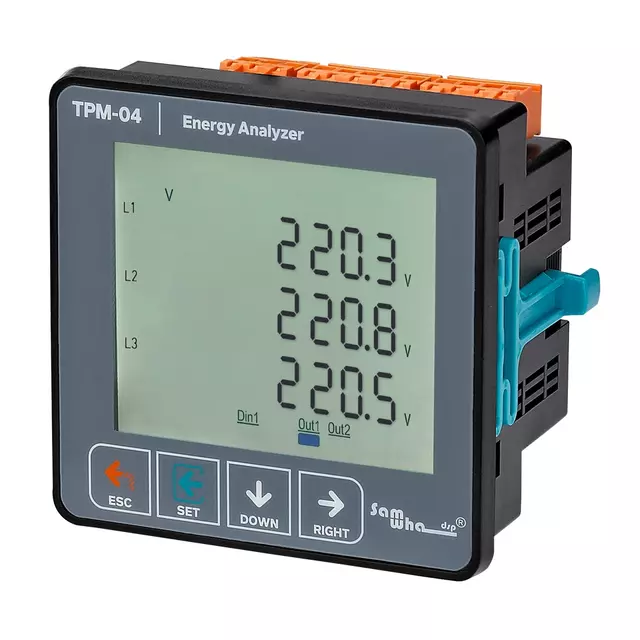

TPM-04 Energy Analyzer (96×96 Panel Type, Included C.T)

TPM-04 Energy Analyzer (96×96 Panel Type, Included C.T)

The TPM-04 is a panel-mounted energy analyzer designed for three-phase electrical systems. With built-in Current Transformers (C.T) and advanced communication capabilities, it enables accurate monitoring, analysis, and reporting of key power parameters for efficient energy management.

Description

TPM-04,04SH ( User Manual ) ➜

Designed for modern power distribution networks, the TPM-04 provides real-time visibility into voltage, current, harmonics, and power metrics across all three phases. The 96×96 panel housing and high-clarity 71.5×61.5 glass LCD display make it ideal for control panels and switchboards in industrial and commercial setups.

Supporting RS485 ModBus RTU communication, the device allows seamless integration into SCADA/BMS systems. It also includes one configurable relay output and advanced event logging for voltage/current anomalies and harmonic distortion, aiding both diagnostics and system reliability.

Key Features

  • Continuous monitoring of 3-phase voltage, current, power, and frequency
  • Built-in Current Transformers for safe and accurate current measurement
  • Measures per-phase Active (P), Reactive (Q), and Apparent (S) Power
  • Displays Cosφ and individual power factor values
  • Voltage and current harmonic analysis up to the 31st harmonic
  • Tracks total Import/Export Energy (ΣkWh) and Reactive Energy (ΣkVArh)
  • Demand monitoring and min/max value logging
  • Adjustable relay output for alarms/control
  • RS485 ModBus RTU communication interface
  • Password-protected configuration menu
  • Resettable energy values and event recording for THD and imbalances

Applications

  • Industrial energy metering and optimization
  • Commercial electrical distribution boards
  • Generator, transformer, and motor diagnostics
  • Remote monitoring via SCADA/BMS
  • Power quality and cost-efficiency audits

With a powerful combination of accurate measurement, clear display, and remote monitoring support, the TPM-04 is a dependable tool for intelligent energy control and cost-effective operation.
