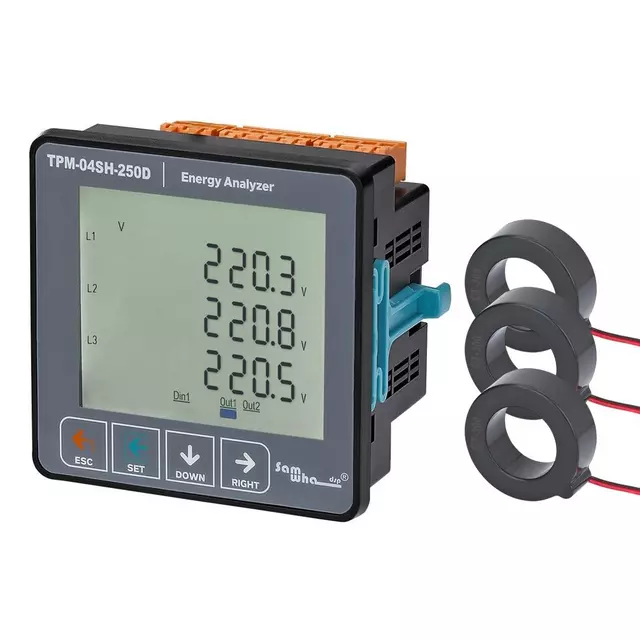

TPM-04SH-250D Energy Analyzer (96×96 Panel Type, Included C.T)

TPM-04SH-250D Energy Analyzer (96×96 Panel Type, Included C.T)

The TPM-04SH-250D is a high-capacity three-phase energy analyzer designed for advanced electrical monitoring, complete with Current Transformers (C.T) for safe and accurate measurement up to 250A. It combines power quality analysis, communication features, and control outputs—ideal for industrial energy management.

Description

TPM-04,04SH ( User Manual ) ➜

Equipped with a vivid 71.5×61.5 glass LCD, the TPM-04SH-250D continuously displays voltage, current, frequency, power factor, harmonics (up to the 31st), and energy consumption data. Its 96×96 panel-mounted format allows easy integration into standard enclosures.

With RS485 (ModBus RTU) communication, 2 relay outputs, and 1 digital input, it supports full automation and system reporting. The included 3-phase C.Ts ensure precise and isolated current measurement—essential for high-load industrial systems up to 250A.

Key Features

  • Real-time monitoring of voltage, current, frequency, and harmonics
  • Displays Active (P), Reactive (Q), and Apparent (S) power per phase
  • Measures Cosφ and power factor values per phase
  • Tracks total import/export active energy (ΣkWh)
  • Tracks total inductive/capacitive reactive energy (ΣkVArh)
  • Includes 3-phase Current Transformers (up to 250A)
  • RS485 ModBus RTU communication ready
  • 2 relay outputs + 1 digital input for automation control
  • High-clarity 71.5×61.5 glass LCD screen
  • Event logs: over/under voltage/current, imbalance, THD
  • Password-protected energy reset and demand tracking

 Applications

  • High-load industrial energy systems
  • Power quality analysis in factories and plants
  • Integration with SCADA/BMS environments
  • Load balancing and energy audits
  • Generator and transformer energy supervision

The TPM-04SH-250D delivers advanced monitoring and control in one compact panel-mounted solution—making it a powerful tool for efficient and intelligent energy management.
